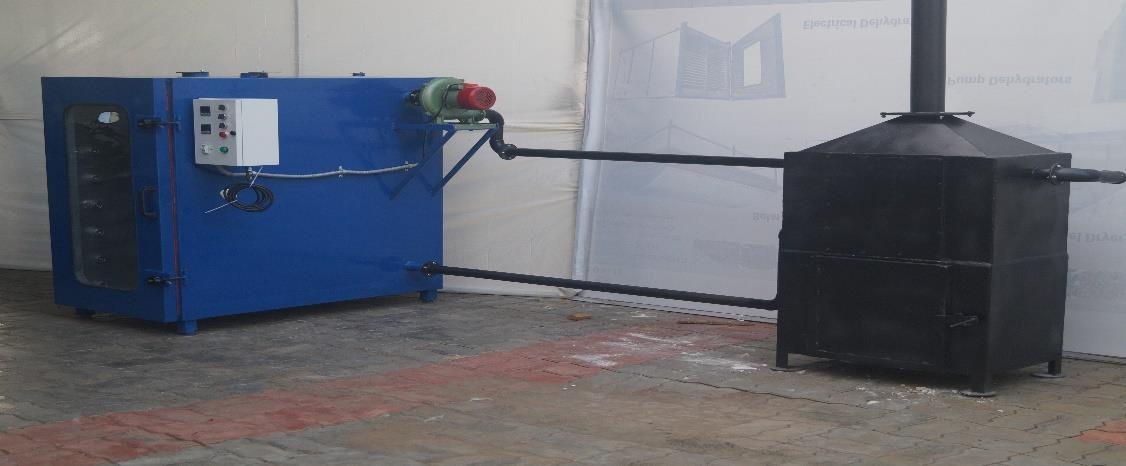

| TECHNICAL SPECIFICATION FOR BIOMASS / FIRE WOOD BASED DRYER | |
| Outer size of the cabin | 2000 x 1220 x 1450mm |
| Outer cabin Material | Galvanized steel 0.8mm thickness |
| Main frame material | GP square pipe – 40 × 80 × 1.8mm thick |
| Inner cabin size | 1920 × 1150 × 1370mm |
| Inner cabin Material | Stainless Steel 304 grade |
| Insulation | Rock wool slab 48Kg |
| No of trays | 34 No’s |
| Tray material | Stainless steel 304 grade |
| Tray size | 1120 × 530×20mm |
| Tray loading capacity | 5 – 7Kgs (Based on the product) |
| Exhaust Fans | 65 watts – 1 No |
| Exhaust fan operating voltage | 230 volt AC |
| Sensors | Temperature / Humidity |
| Control panel | Provided for Temp / Humidity |
| Temperature Uniformity | +/- 5 °Celsius |
| Source of fuel | Firewood / Agri waste / Briquettes |
| Firewood boiler | 5-10kg capacity |
| Firewood boiler size | 750 × 750 × 900mm |
| Boiler material | Mild steel 4mm thickness |
| Air output temperature | 60 to 95 Deg Celsius |
| Firewood requirement per hour | 7 to 10kgs / hour, depending on the temperature |
| Heat exchanger material | MS pipes |
| Pipe size | 3 inch pipe / 3mm thickness |
| Heat exchanger length | 30 feet |
| Internal Circulation Fan | 90 watts x 2nos | 65 watts – 4 Nos |
| Hot air Blower | 250 watts–1No |
| Impeller | Castiron |
| Application | Drying ginger, turmeric ,vegetables, spices, etc |
| Drying time | 8 to 15 hours based on the product |
